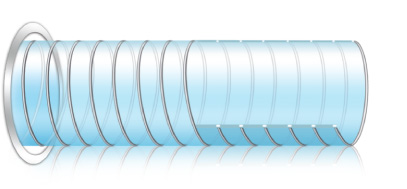

Прозрачный Шланг Со Стальной Проволокой

Features :
• Can be used as a sucker and a transmitter
• Extremely durable against the max. flexiblity and break.
• -20°C and +65°C Static Conditions
• -5°C and +43°C Dynamic Conditions

Using Areas:
• Used for liquid nourishment transmission, suction and unloading
functions by suction pumps at nourisment and agriculture industry

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HCT008	8	5/16”	7	900	20	135	50
HCT010	10	3/8”	7	900	20	160	50
HCT012	13	1/2”	7	900	25	180	50
HCT058	16	5/8”	7	900	35	225	50
HCT018	18	-	7	900	35	280	50
HCT034	19	3/4”	7	900	45	310	50
HCT020	20	-	7	900	45	340	50
HCT022	22	-	7	900	50	410	50
HCT001	25	1”	6	900	60	510	50
HCT114	32	1.1/4”	6	900	80	650	50
HCT138	35	1.3/8”	5	900	85	730	50
HCT112	38	1.1/2”	5	900	90	800	50
HCT115	40	1.1/5”	5	900	95	870	50
HCT134	45	1.3/4”	5	900	110	1100	50
HCT002	51	2”	5	900	125	1200	50
HCT212	63	2.1/2”	4	900	160	1950	50
HCT003	76	3”	4	900	195	2500	30-50
HCT312	90	3 1/2”	4	900	250	3000	30-50
HCT004	102	4”	4	900	300	3400	30-50
HCT005	127	5”	4	900	400	4700	30-50
HCT006	152	6”	4	900	500	6350	30-50

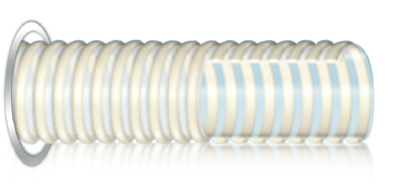

DOLUNAY Шланг Для Питьевой Воды

Features :
• Can be used as a transmitter
• Hardened PVC spirals are durable against flexiblity and break
• -20°C and +65°C Static Conditions
• -5°C and +43°C Dynamic Conditions

Using Areas:
• Used for unloading of spring water, juice and liquids as such

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HSG034H	19	3/4”	8	650	76	185	50
HSG001H	25	1”	7	650	100	230	50
HSG114H	32	1.1/4”	6	650	128	290	50
HSG112H	38	1.1/2”	6	650	152	440	50
HSG002H	51	2”	5	650	200	690	50
HSG212H	63	2.1/2”	5	650	252	890	50
HSG003H	76	3”	4	650	300	1080	50
HSG312H	90	3.1/2”	3	650	350	1340	25
HSG004H	102	4”	3	650	400	1600	25
HSG005H	127	5”	2,5	650	500	2500	25
HSG006H	152	6”	2	650	600	3000	25

AKSU Шланг Для Питьевой Воды

Features :
• Can be used as a sucker and a transmitter
• Hardened PVC spirals are durable against flexiblity and break
• -20°C and +65°C Static Conditions
• -5°C and +43°C Dynamic Conditions

Using Areas:
• Used for unloading of spring water, juice and liquids as such

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HSG034	19	3/4”	8	750	85	270	50
HSG001	25	1”	8	750	112	300	50
HSG114	32	1.1/4”	7	750	144	400	50
HSG112	38	1.1/2”	7	750	171	500	50
HSG002	51	2”	5,5	750	225	765	50
HSG212	63	2.1/2”	5	750	283	1000	50
HSG003	76	3”	4	750	337	1250	50
HSG312	90	3.1/2”	4	750	403	1750	25
HSG004	102	4”	4	750	459	2150	25
HSG005	127	5”	3	600	500	3000	25
HSG006	152	6”	3	600	602	4000	25

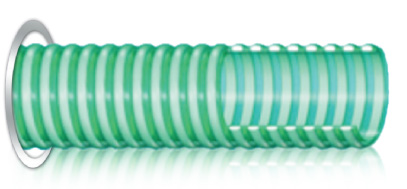

ILGAZ Всасывающий Шланг Для Легких Предметов

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HAE034H	19	3/4”	8	650	76	185	50
HAE001H	25	1”	7	650	100	230	50
HAE114H	32	1.1/4”	6	650	128	290	50
HAE112H	38	1.1/2”	6	650	152	440	50
HAE002H	51	2”	5	650	200	690	50
HAE212H	63	2.1/2”	5	650	252	890	50
HAE003H	76	3”	4	650	300	1080	50
HAE312H	90	3.1/2”	3	650	350	1340	25
HAE004H	102	4”	3	650	400	1600	25
HAE005H	127	5”	2,5	650	500	2500	25
HAE006H	152	6”	2	650	600	3000	25
HAE008H	203	8”	2	650	800	4850	25

GÖNEN Абсорбентовый Спиральный Шланг

Features :
• Can be used as a sucker and a transmitter
• Hardened PVC spirals are durable against flexiblity and break
• -20°C and +65°C Static conditions
• -5°C and +43°C Dynamic conditions

Using Areas:
• Used for unloading of any kind of liquids at agriculture, industry,
building constructions

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HAE034	19	3/4”	8	750	85	270	50
HAE001	25	1”	8	750	112	300	50
HAE114	32	1.1/4”	7	750	144	400	50
HAE112	38	1.1/2”	7	750	171	500	50
HAE002	51	2”	5,5	750	225	765	50
HAE212	63	2.1/2”	5	750	283	1080	50
HAE003	76	3”	4	750	337	1250	50
HAE312	90	3.1/2”	4	750	403	1750	25
HAE004	102	4”	4	750	459	2150	25
HAE005	127	5”	3	600	500	3000	25
HAE006	152	6”	3	600	602	4000	25
HAE008	203	8”	3	800	900	6200	6

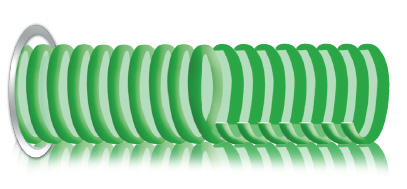

OKYANUS Абсорбентовый Спиральный Шланг

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HAE034S	19	3/4”	8	800	85	280	50
HAE001S	25	1”	8	800	112	350	50
HAE114S	32	1.1/4”	7	800	144	450	50
HAE112S	38	1.1/2”	7	800	171	560	50
HAE002S	51	2”	6	800	225	850	50
HAE212S	63	2.1/2”	5	800	283	1150	50
HAE003S	76	3”	4	800	337	1480	50
HAE312S	90	3.1/2”	4	800	398	1900	25
HAE004S	102	4”	4	800	459	2400	25
HAE005S	127	5”	4	800	520	3650	25
HAE006S	152	6”	4	800	670	4600	25
HAE008S	203	8”	4	800	750	7500	6

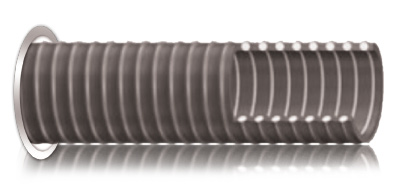

TOROS Всасывающий Шланг Для Тяжелых Предметов

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HAE034A	19	3/4”	8	900	95	335	50
HAE001A	25	1”	8	900	125	400	50
HAE114A	32	1.1/4”	7	900	160	580	50
HAE112A	38	1.1/2”	7	900	190	680	50
HAE002A	51	2”	6	900	250	970	50
HAE212A	63	2.1/2”	5,5	900	315	1405	50
HAE003A	76	3”	4	900	375	1680	50
HAE312A	90	3.1/2”	4	900	425	2055	25
HAE004A	102	4”	4	900	500	2600	25
HAE005A	127	5”	4	900	625	4000	25
HAE006A	152	6”	4	900	850	5200	25
HAE008A	203	8”	4	900	1000	8500	6

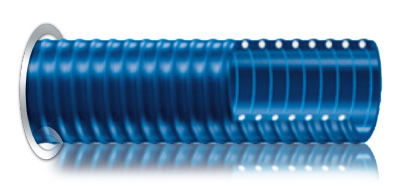

YAKAMOZ Шланг Для Топлива И Масла

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HSP034M	19	3/4”	6	800	114	360	50
HSP001M	25	1”	6	800	150	480	50
HSP114M	32	1.1/4”	5	800	192	580	50
HSP112M	38	1.1/2”	4	800	228	670	50
HSP002M	51	2”	4	800	300	975	50
HSP212M	63	2.1/2”	4	800	378	1350	50
HSP003M	76	3”	3	800	450	1700	50
HSP312M	90	3.1/2”	3	800	520	2100	25
HSP004M	102	4”	3	800	600	2600	25

YAKAMOZ Всасывающий Шланг Для Тяжелых Предметов

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HSP034H	19	3/4”	7	900	114	405	50
HSP001H	25	1”	7	900	150	535	50
HSP114H	32	1.1/4”	6	900	192	680	50
HSP112H	38	1.1/2”	5	900	228	775	50
HSP002H	51	2”	5	900	300	1165	50
HSP212H	63	2.1/2”	5	900	378	1700	50
HSP003H	76	3”	4	900	450	1940	50
HSP312H	90	3.1/2”	4	900	525	2425	25
HSP004H	102	4”	3,5	900	600	3200	25

Вино шланг

Features :
• Can be used as a medium suction and delivery hose
• Hardened PVC spirals are durable against flexiblity and break
• -20C and +65C Static conditions
• -5C and +43C Dynamic conditions

Using Areas:
Moderate suction and delivery primarily of wine , beer, beverages, distillates up to lıght alcohol and generally foodstuffs.

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HAS034O	19	3/4”	6	800	85	280	50
HAS001O	25	1”	6	800	110	350	50
HAS114O	32	1.1/4”	5	800	125	460	50
HAS112O	38	1.1/2”	4	800	155	570	50
HAS002O	51	2”	4	800	215	830	50
HAS212O	63	2.1/2”	4	800	275	1000	50
HAS003O	76	3”	3	800	335	1450	50
HAS312O	90	3.1/2”	3	800	415	1750	25
HAS004O	102	4”	3	800	450	2150	25
HAS005O	125	5”	3	800	660	3200	25
HAS006O	152	6”	3	800	750	4200	25

Вино шланг

Features :
• Can be used as a heavy suction and delivery hose
• Hardened PVC spirals are durable against flexiblity and break
• -20C and +65C Static conditions
• -5C and +43C Dynamic conditions

Using Areas:
Suction and delivery hose of wine, beer, beverages distillates up to 28 ° c alcohol and generally foodstuffs

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HAS034A	19	3/4”	6	800	95	335	50
HAS001A	25	1”	6	800	125	400	50
HAS114A	32	1.1/4”	5	800	160	580	50
HAS112A	38	1.1/2”	4	800	190	680	50
HAS002A	51	2”	4	800	250	970	50
HAS212A	63	2.1/2”	4	800	315	1405	50
HAS003A	76	3”	3	800	375	1680	50
HAS312A	90	3.1/2”	3	800	450	2055	25
HAS004A	102	4”	3	800	500	2600	25
HAS005A	125	5”	3	800	625	3395	25
HAS006A	152	6”	3	800	750	4460	25

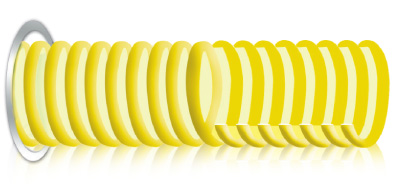

Спускной спиральный шланг

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HAV034	19	3/4”	8	750	85	180	50
HAV001	25	1”	7	750	110	240	50
HAV114	32	1.1/4”	6	750	140	320	50
HAV112	38	1.1/2”	6	750	170	400	50
HAV002	51	2”	5	750	220	680	50
HAV212	63	2.1/2”	5	750	280	940	50
HAV003	76	3”	4	750	340	1180	50
HAV312	90	3.1/2”	3	750	400	1700	25
HAV004	102	4”	3	750	460	2000	25

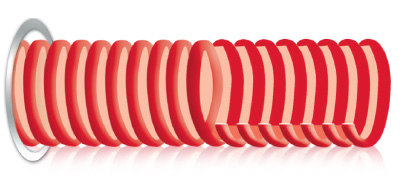

Легкий спускной спиральный шланг

Code	Diameter		Work Pressure	Vacuum	Bending Radius	Weight	Length
	Mm	Inch	Bar	Mbar	Mm	Gr/Mt	Mt
HAHV034	19	3/4”	8	600	76	185	50
HAHV001	25	1”	7	600	100	220	50
HAHV114	32	1.1/4”	6	600	128	270	50
HAHV112	38	1.1/2”	6	600	152	380	50
HAHV002	51	2”	5	600	200	540	50
HAHV212	63	2.1/2”	5	600	252	780	50
HAHV003	76	3”	4	600	300	1000	50
HAHV312	90	3.1/2”	3	600	355	1300	25
HAHV004	102	4”	3	600	400	1600	25
HAHV005	127	5”	2,5	600	500	2650	25
HAHV006	152	6”	2	600	600	3000	25
HAHV008	203	8”	2	600	800	4000	25

Шланг Всасывающий Песок, Дым, Воздух

Features :
• Can be used as a sucker and a transmitter
• Hardened PVC spirals are durable against flexiblity and break
• -20°C and +65°C Static Conditions
• -5°C and +43°C Dynamic Conditions

.

Using Areas:
• Used for sucking and unloading of dust, air and smoke by VAKUMing at industry, minds, docks, wood and furniture works.

Code	Diameter		Bending Radius	Weight	Length
	Mm	Inch	Mm	Gr/Mt	Mt
HAT001S	25	1”	30	120	50
HAT114S	32	1.1/4”	40	180	50
HAT112S	38	1.1/2”	45	220	50
HAT002S	51	2”	55	350	50
HAT212S	63	2.1/2”	75	520	50
HAT003S	76	3”	90	620	50
HAT312S	90	3.1/2”	110	720	25
HAT004S	102	4”	130	820	25
HAT005S	127	5”	160	1200	25
HAT006S	152	6”	185	1600	25
HAT008S	203	8”	280	2500	25

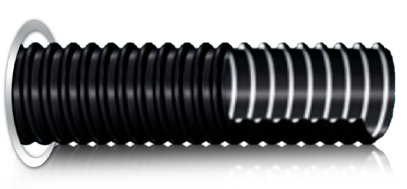

TUNA Шланг Всасывающий Песок, Дым, Воздух

Features :
• Can be used as a sucker and a transmitter
• Hardened PVC spirals are durable against flexiblity and break
• -20°C and +65°C Static Conditions
• -5°C and +43°C Dynamic Conditions

Using Areas:
• Used for sucking and unloading of dust, air and smoke by VAKUMing at industry, minds, docks, wood and furniture works.

Code	Diameter		Bending Radius	Weight	Length
	Mm	Inch	Mm	Gr/Mt	Mt
HATE034	19	3/4”	25	120	50
HATE001	25	1”	35	175	50
HATE114	32	1.1/4”	45	220	50
HATE112	38	1.1/2”	50	280	50
HATE002	51	2”	65	430	50
HATE212	63	2.1/2”	85	600	50
HATE003	76	3”	100	750	50
HATE312	90	3.1/2”	120	900	25
HATE004	102	4”	140	1000	25
HATE005	127	5”	175	1600	25
HATE006	152	6”	200	2000	25
HATE008	203	8”	320	3000	25

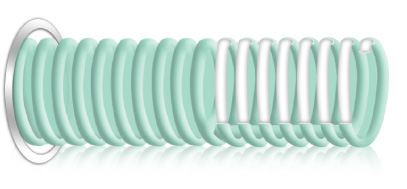

Гофрированный прозрачный шланг

Features :
• Can be used as a transmitter
• Hardened PVC spirals are durable against flexiblity and break
• -20°C and +65°C Static Conditions
• -5°C and +43°C Dynamic Conditions

Using Areas:
• Used at houses, construction sides, industry, sinks and syphon, etc.

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HST001E	25	1”	120	50
HST117E	30	1.1/7”	140	50
HST114E	32	1.1/4”	160	50
HST112E	38	1.1/2”	220	50

HST058	16	5/8”	80	50
HST034	19	3/4”	100	50
HST001	25	1”	140	50
HST117	30	1.1/7”	160	50
HST114	32	1.1/4”	180	50
HST112	38	1.1/2”	260	50
HST002	51	2”	300	50

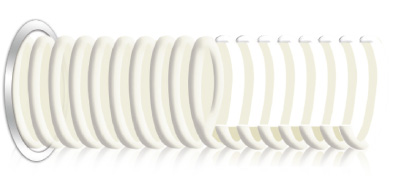

Гофрированный прозрачный шланг

Features :
• Can be used as a transmitter
• Hardened PVC spirals are durable against flexiblity and break
• -20°C and +65°C Static Conditions
• -5°C and +43°C Dynamic Conditions

.

Using Areas:
Used at houses, construction sides, industry, sinks and syphon, etc.

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HSO001E	25	1”	120	50
HSO117E	30	1.1/7”	140	50
HSO114E	32	1.1/4”	160	50
HSO112E	38	1.1/2”	220	50

HSO058	16	5/8”	80	50
HSO034	19	3/4”	100	50
HSO001	25	1”	140	50
HSO117	30	1.1/7”	160	50
HSO114	32	1.1/4”	180	50
HSO112	38	1.1/2”	260	50
HSO002	51	2”	300	50

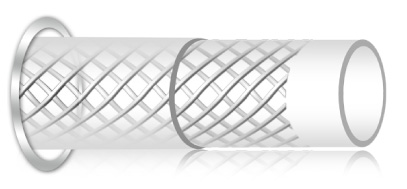

Резиновый соединительный шланг

Features :
• Made of first grade PVC material
• Supported by high intensive polyestern string
• Durable of abrasion
• Durable for working between at -5°C and +65°C

.

Using Areas:
• Used for unloading of petrol and its derivates, low checmical liquids and high pressure issrigation operations at industry

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HKS014	6	1/4”	20	100	100
HKS516	8	5/16”	20	135	100
HKS038	10	3/8”	20	145	100
HKS012	13	1/2”	18	180	100
HKS058	16	5/8”	15	220	100
HKS034	19	3/4”	12	315	100
HKS001	25	1”	10	450	50
HKS114	32	1.1/4”	8	630	50
HKS112	38	1.1/2”	6	730	50
HKS002	51	2”	6	1100	50

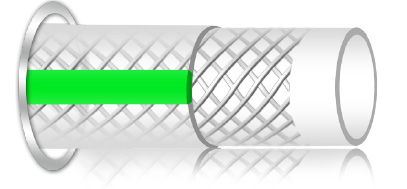

Может использоваться с употребляемыми в пищу жидкостями, прозрачный шланг

Features :
• Made of first grade PVC material
• Supported by high intensive polyestern string
• Durable of abrasion
• Durable for working between at -5°C and +65°C

Using Areas:
• Used for Unloading of liguids at industry and food industry

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HKG014	6	1/4”	20	100	100
HKG516	8	5/16”	20	135	100
HKG038	10	3/8”	20	145	100
HKG012	13	1/2”	18	180	100
HKG058	16	5/8”	15	220	100
HKG034	19	3/4”	12	315	100
HKG001	25	1”	10	450	50
HKG114	32	1.1/4”	8	630	50
HKG112	38	1.1/2”	6	730	50
HKG002	51	2”	6	1100	50

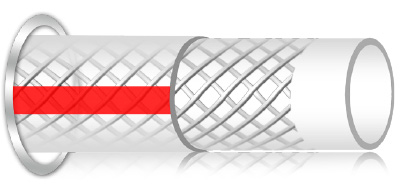

Резиновый соединительный шланг

Features :
• Made of first grade PVC material
• Supported by high intensive polyestern string
• Durable of abrasion
• Durable for working between at -5°C and +65°C

.
Using Areas:
• Used for unloading of petrol and its derivates, low checmical liquids and high pressure issrigation operations at industry

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HKN012	13	1/2”	18	150	100
HKN058	16	5/8”	15	180	100
HKN034	19	3/4”	12	250	100
HKN001	25	1”	10	380	50
HKN114	32	1.1/4”	8	500	50
HKN112	38	1.1/2”	6	640	50

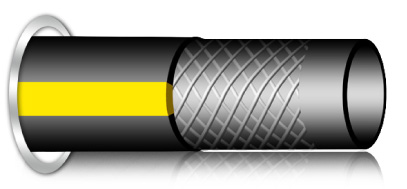

Термостойкий Шланг

Features :
• Special upper layer providing heat isolation
• Greaseproof, dielectric and durable against UV rays and Ozone
• Durable for working between at -5°C and +65°C

Using Areas:
• Used for transmitting of hot water and recirculation functions.

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HTK012	13	1/2”	10	235	100
HTK058	16	5/8”	10	310	100
HTK034	19	3/4”	8	350	100
HTK001	25	1”	6	500	50

Шланг для компрессора

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt

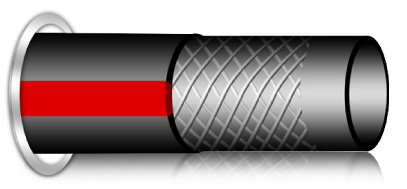

HKP316	4,5	3/16”	10	100	100
HKP014	6	1/4”	10	115	100
HKP516	8	5/16”	10	140	100
HKP038	10	3/8”	10	180	100
HKP012	13	1/2”	10	250	100
HKP058	16	5/8”	10	360	100
HKP034	19	3/4”	10	480	50
HKP001	25	1”	10	680	50
HKP114	32	1” 1/4”	10	900	50
HKP112	38	1” 1/2”	10	1100	50
HKP002	51	2”	10	1550	50

Шланг для компрессора

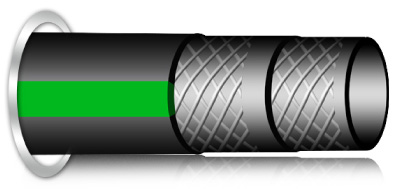

HKC012

Features :
• Supported by special syhntetic PVC and high strong polyester
• Durable against compressor oils and any kind of weather conditions.
• Durable for working between at -5°C and +60°C
.

Using Areas:
• Used for transmitting of any kind of pressured air and with all airtools

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HKC012	13	1/2”	20	335	100
HKC058	16	5/8”	20	435	100
HKC034	19	3/4”	20	565	50
HKC001	25	1”	20	790	50
HKC114	32	1” 1/4”	20	1000	50
HKC112	38	1” 1/2”	20	1250	50

Шланг Для Пульверизатора

Features :
• Made of first grade PVC material
• Durable of pull and tension.
• Durable for working between at -5°C and +60°C

Using Areas:
• Used for high pressure disinfect at agriculture

Code	Diameter	Weight	Length
HAHV034	3/4”	50	185
HAHV001	1”	50	220
HAHV114	1.1/4”	50	270
HAHV112	1.1/2”	50	380
HAHV002	2”	50	540
HAHV212	2.1/2”	50	780
HAHV003	3”	50	1000
HAHV003A	3”	25	1000
HAHV312	3.1/2”	25	1300
HAHV004	4”	25	1600
HAHV005	5”	25	2650
HAHV006	6”	25	3000

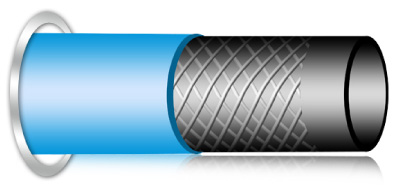

Шланг Для Пульверизатора

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HPR408	8	5/16”	40	140	100
HPR410	10	3/8”	40	165	100
HPR413	12,5	1/2”	40	275	100

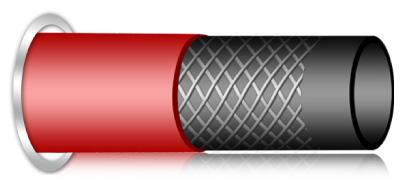

Пожарный шланг

Features :
• Yangın dolaplarında, basınçlı söndürme işlemlerinde vb. alanlarda kullanılır.

Using Areas:
• Used for fire extinguishing and works as such

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HYN034	19	3/4”	14	340	100
HYN001	25	1”	14	500	50

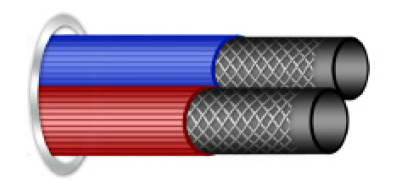

Thermo Twin Welding Hoses

Features :
• Supported by high intensive polyestern string
• Durable of abrasion, UV and ozone and never conducts electricity
• Durable for working between at -5°C and +60°C

Using Areas:
Used for air, water and ligh chemical liquids transmissions at industry and agriculture

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
MMS006	6	1/4”	20	240	100
MMS008	8	5/16”	20	300	100
MMS010	10	3/8”	20	420	100

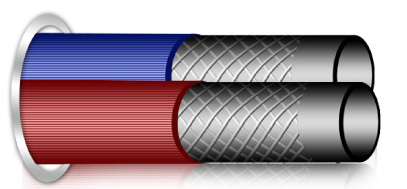

Шланг для кислорода

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HOS014	6	1/4”	20	120	100
HAC014	6	1/4”	20	120	100
HOS516	8	5/16”	20	150	100
HAC516	8	5/16”	20	150	100
HOS038	10	3/8”	20	210	100
HAC038	10	3/8”	20	210	100

Сварочный Шланг

Features :
Supported by high intensive polyestern string
• Durable of abrasion, UV and ozone and never conducts electricity

Using Areas:
• Used for cooling water recirculation and welding machines.

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt

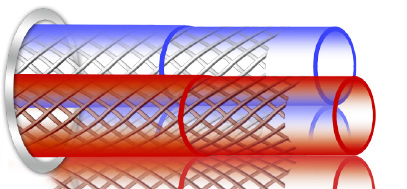

HTH532	4	5/32”	35	100
HTH316E	5	3/16”	40	100
HTH316	5	3/16”	85	100
HTH014	6	1/4”	85	100
HTH516	8	5/16”	100	100
HTH038	10	3/8”	120	100

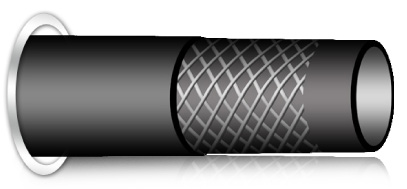

Соединительный шланг для газа

Features :
• Supported by high intensive polyestern string
• Greaseproof, dielectric and durable against UV rays and Ozone
• Durable for working between at -20°C and +65°C

Using Areas:
• Used for transmitting of LPG gas

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HKP006S	6	1/4”	20	135	40/50
HKP008S	8	5/16”	20	180	40/50
HKP010S	10	3/8”	20	222	40/50

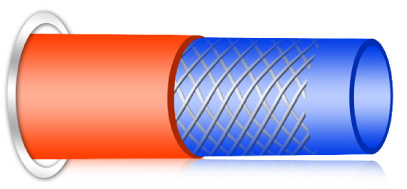

Соединительный шланг для газа

Features :
• Supported by high intensive polyestern string
• Greaseproof, dielectric and durable against UV rays and Ozone
• Durable for working between at -5°C and +60°C

Using Areas:
• Used for transmitting of LPG gas

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
TH-808	8	5/16”	150	50
TH-810	10	3/8”	180	50

Соединительный шланг для газа

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt

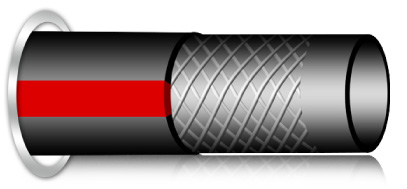

HLPG08S	8	5/16”	150	50
HLPG10S	10	3/8”	170	50

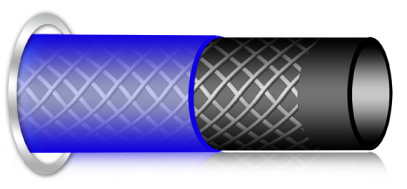

Соединительный шланг для газа

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HLPG08O	8	5/16”	130	50
HLPG10O	10	3/8”	150	50

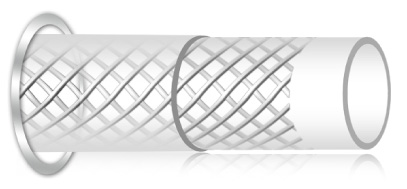

Соединительный шланг для газа

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HLPG08T	8	5/16”	130	50
HLPG10T	10	3/8”	150	50

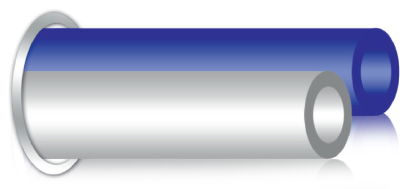

Соединительный шланг для газа

Features :
• Supported by high intensive polyestern string
• Oil-resistant, not conduct electricity
• Durable for working between at -5°C and +60°C

Using Areas:
• Used for transmitting of LPG gas

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HLPG08	8	5/16”	130	50
HLPG10	10	3/8”	150	50

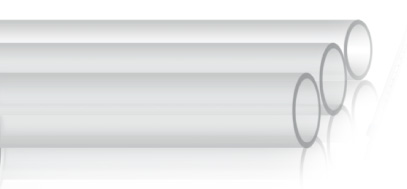

Промышленный Прозрачный Шланг

Features :
• Made of first grade Transparent PVC material
• Never harmed by pull and tension because of the raw material used
• Durable of pull and tension.
• Durable for working between at -5°C and +60°C
.

Using Areas:
• Used at automotive industry

Code	Diameter	Weight	Length
	Mm	Gr/Mt	Mt
HTO004	4x8	50	100
HTO005	5x9	58	100
HTO006	6x10	65	100
HTO007	7x12	95	100
HTO008	8x13	105	100
HTO009	9x14	125	100
HTO010	10x16	135	100
HTO012	12x17	160	100

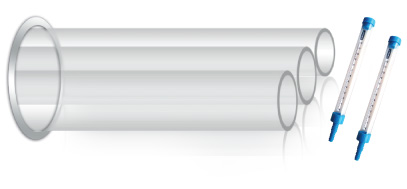

Гидроуровень

Features :
• Made of first grade Transparent PVC material
• Durable of pull and tension.
• Durable for working between at -5°C and +40°C

Using Areas:
• Used at construction business

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HM006	6	1/4”	30	100
HM008	8	5/16”	35	100
HM010	10	3/8”	45	100

HML015	8	5/16”	40	TL/Mt., 15 Mt
HML020	8	5/16”	40	TL/Mt., 20 Mt
HML025	8	5/16”	40	TL/Mt., 25 Mt

Прозрачный шланг

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HT012E	13	1/2”	95	100
HT058E	16	5/8”	110	100
HT034E	19	3/4”	150	100
HT001E	25	1”	240	50
HT114E	32	1.1/4”	300	50
HT112E	38	1.1/2”	440	50
HT012K	13	1/2”	140	100
HT058K	16	5/8”	170	100
HT034K	19	3/4”	190	100
HT001K	25	1”	300	50
HT114K	32	1.1/4”	400	50
HT112K	38	1.1/2”	500	50
HT012S	13	1/2”	180	100
HT058S	16	5/8”	250	100
HT034S	19	3/4”	315	100
HT001S	25	1”	455	50
HT114S	32	1.1/4”	630	50

Резиновый соединительный шланг

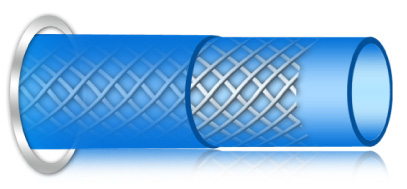

HKE012A

Features :
Made of first grade Transparent PVC material
• Supported by high quality polyster
• Durable against push and tension. Not fire-proof
• Durable for working between at -5°C and +40°C

Using Areas:
Used for all kind of unloadings and irrigations at agriculture, garden, con struction side and houses.

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HKE012	13	1/2”	80	100
HKE058	16	5/8”	110	100
HKE034	19	3/4”	130	100
HKE001	25	1”	220	50
HKE114	32	1.1/4”	280	50
HKE112	38	1.1/2”	440	50

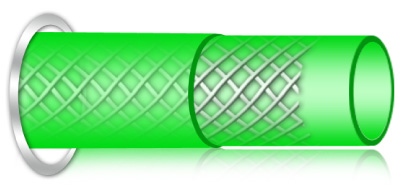

Резиновый соединительный шланг

Features :
• Made of first grade Transparent PVC material
• Supported by high quality polyster
• Durable against push and tension. Not fire-proof
• Durable for working between at -5°C and +60°C

Using Areas:
Used for all kind of unloadings and irrigations at agriculture, garden, con struction side and houses.

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HKT012	13	1/2”	110	100
HKT058	16	5/8”	140	100
HKT034	19	3/4”	180	100
HKT001	25	1”	270	50
HKT114	32	1.1/4”	340	50
HKT112	38	1.1/2”	560	50

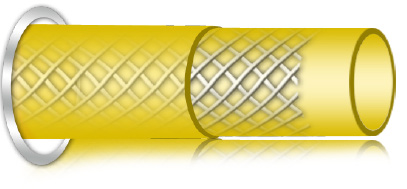

Резиновый соединительный шланг

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HKA012	13	1/2”	135	100
HKA058	16	5/8”	180	100
HKA034	19	3/4”	235	100
HKA001	25	1”	340	50
HKA114	32	1.1/4”	610	50
HKA112	38	1.1/2”	730	50

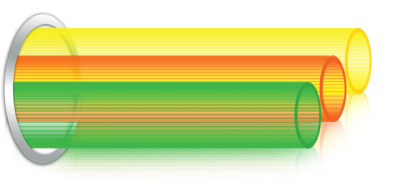

Садовый шланг

Features :
• Made of first grade Transparent PVC material
• Durable against push and tension. Not fire-proof
• Durable for working between at -5°C and +40°C

Using Areas:
• Used for flow lines, low VAKUM lines, irrigation of gardens

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HSN012	13	1/2”	120	100
HSN058	16	5/8”	150	100
HSN034	19	3/4”	200	100
HSN001	25	1”	300	50
HSN114	32	1.1/4”	400	50
HSN112	38	1.1/2”	600	50

HSN012K	13	1/2”	150	100
HSN034K	19	3/4”	240	100
HSN001K	25	1”	360	50

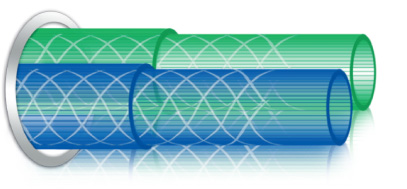

Армированный Шланг

Features :
• Made of first grade Transparent PVC material
• Supported by high quality polyster
• Durable against push and tension. Not fire-proof
• Durable for working between at -5°C and +40°C

Using Areas:
• Used for irrigation at agriculture, industry, house and garden

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HSX012	13	1/2”	150	100
HSX058	16	5/8”	180	100
HSX034	19	3/4”	235	100
HSX001	25	1”	360	50
HSX114	32	1.1/4”	610	50
HSX112	38	1.1/2”	730	50

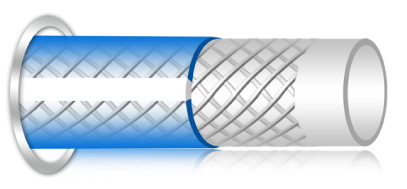

Садовый шланг Riva

Features :
• Upper layer is made of first grade PVC
• Lower layer is made of white PVC
• Supported by high quality polyster
• Durable for working between at -5°C and +65°C

Using Areas:
• Used for all kind of unloadings and irrigations at agriculture, garden, construction side and houses.

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HGK012	13	1/2”	6	110	100
HGK058	16	5/8”	5	140	100
HGK034	19	3/4”	4	180	100
HGK001	25	1”	3	270	50
HGK114	32	1.1/4”	2	320	50
HGK112	38	1.1/2”	2	560	50

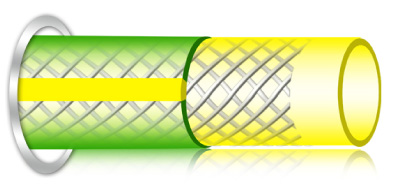

Садовый шланг

Features :
• Upper layer is made of first grade PVC
• Lower layer is made of yellow PVC
• Supported by high quality polyster
• Durable for working between at -5°C and +65°C

Using Areas:
• Used for all kind of unloadings and irrigations at agriculture, garden, construction side and houses.

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HGL012	13	1/2”	7	135	100
HGL058	16	5/8”	6	180	100
HGL034	19	3/4”	5	235	100
HGL001	25	1”	4	340	50
HGL114	32	1.1/4”	4	610	50
HGL112	38	1.1/2”	3	730	50

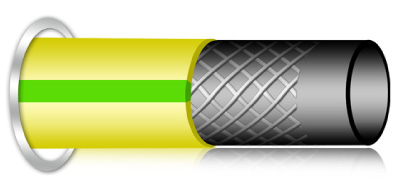

Садовый шланг, желтый

Features :
• Upper layer is made of first grade PVC
• Lower layer is made of black PVC
• Supported by high quality polyster
• Durable for working between at -5°C and +65°C

Using Areas:
• Used for all kind of unloadings and irrigations at agriculture, garden, construction side and houses.

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HGP012	13	1/2”	6	110	100
HGP058	16	5/8”	5	140	100
HGP034	19	3/4”	4	180	100
HGP001	25	1”	3	270	50
HGP114	32	1.1/4”	2	320	50
HGP112	38	1.1/2”	2	560	50

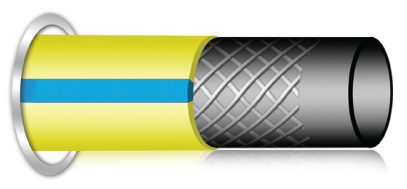

Садовый шланг, Daisy

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HGX012	13	1/2”	6	135	100
HGX058	16	5/8”	5	180	100
HGX034	19	3/4”	5	235	100
HGX001	25	1”	4	340	50
HGX114	32	1.1/4”	3	610	50
HGX112	38	1.1/2”	2	730	50

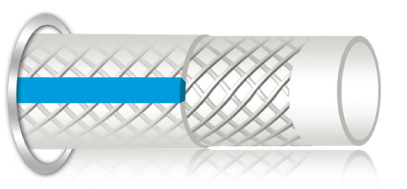

Садовый Шланг

Features :
• Upper layer is made of first grade PVC
• Lower layer is made of white PVC
• Supported by high quality polyster
• Durable for working between at -5°C and +65°C

Using Areas:
Durable of partially oil and gasoline, irrigation at gardens, house and yacth and boat truction side and houses.

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HMN012	12,5	1/2”	10	170	100
HMN058	16	5/8”	10	220	100
HMN034	19	3/4”	10	270	100
HMN001	25	1”	10	400	50

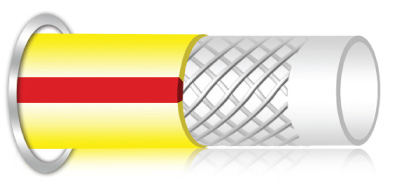

Садовый Шланг, Melisa

Features :
• Upper layer is made of first grade PVC
• Lower layer is made of white PVC
• Supported by high quality polyster
• Durable for working between at -5°C and +65°C

Using Areas:
Used for all kind of unloadings and irrigations at agriculture, garden, construction side and houses.

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HKM012	12,5	1/2”	8	150	100
HKM058	16	5/8”	8	190	100
HKM034	19	3/4”	8	250	100
HKM001	25	1”	8	360	50
HKM114	32	1” 1/4”	8	630	50
HKM112	38	1” 1/2”	8	730	50
HKM002	51	2”	8	1200	50

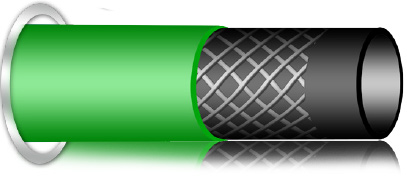

Садовый Шланг

Features :
• Upper layer is made of first grade PVC
• Lower layer is made of white PVC
• Supported by high quality polyster
• Durable for working between at -5°C and +65°C

Using Areas:
Used for all kind of unloadings and irrigations at agriculture, garden, construction side and houses.

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HGC012	12,5	1/2”	8	160	100
HGC058	16	5/8”	8	200	100
HGC034	19	3/4”	8	280	100
HGC001	25	1”	8	420	50
HGC114	32	1” 1/4”	8	600	50
HGC112	38	1” 1/2”	8	700	50
HGC002	51	2”	8	1200	50

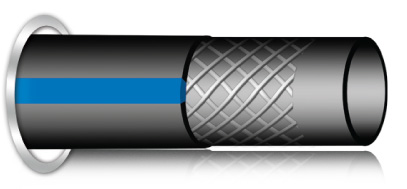

Теплостойкий шланг для полива (Средняя функция)

Features :
• Special upper layer providing heat isolation
• Greaseproof, dielectric and durable against UV rays and Ozone
• Durable for working between at -10°C and +60°C

Using Areas:
• Used for all kind of unloadings and irrigations at agriculture, garden, con struction side and houses.

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HTS012	13	1/2”	7	160	100
HTS058	16	5/8”	7	200	100
HTS034	19	3/4”	7	280	100
HTS001	25	1”	7	420	50
HTS114	32	1.1/4”	7	600	50
HTS112	38	1.1/2”	7	700	50
HTS002	51	2”	7	1200	50

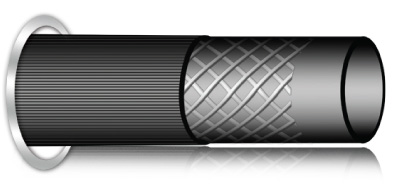

Теплостойкий шланг для полива (Интенсивная функция)

Code	Diameter		Work Pressure	Weight	Length
	Mm	Inch	Bar	Gr/Mt	Mt
HCS012	13	1/2”	10	210	100
HCS058	16	5/8”	10	260	100
HCS034	19	3/4”	10	340	100
HCS001	25	1”	10	480	50
HCS114	32	1.1/4”	10	680	50
HCS112	38	1.1/2”	10	800	50

Садовый шланг, Meteor

Features :
• Upper layer in green and half transparent
• Lower layer is made of black PVC
• Supported by high quality polyster
• Durable for working between at -5°C and +40°C

Using Areas:
• Used for all kind of unloadings and irrigations at agriculture, garden, construction side and houses.

Code	Diameter		Weight	Length
	Mm	Inch	Gr/Mt	Mt
HM012	13	1/2”	80	100
HM058	16	5/8”	110	100
HM034	19	3/4”	140	100
HM001	25	1”	220	50
HM114	32	1.1/4”	280	50

Садовый шланг, Meteor

Features :
• Upper layer in green and half transparent
• Lower layer is made of white PVC
• Supported by high quality polyster
• Durable for working between at -5°C and +40°C

Using Areas:
• Used for all kind of unloadings and irrigations at agriculture, garden, construction side and houses.
